Size/Weight
|
| Width
|
946 mm (37-1/4")
|
| Height
|
139 mm (5-1/2")
|
| Depth
|
404 mm (15-15/16”)
|
| Weight
|
6.6 kg (14 lb, 9 oz) not including batteries
|
| Control Interface
|
| Number of Keys
|
61
|
| Touch Response
|
Soft, Medium, Hard, Fixed
|
| Pitch Bend
|
Yes
|

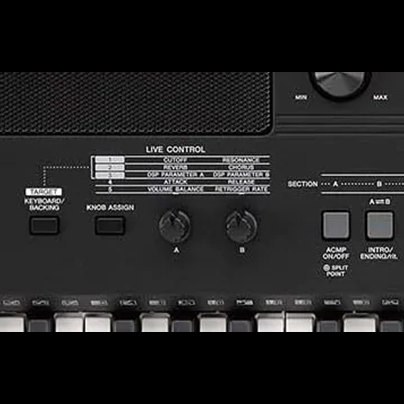

| Control Knobs
|
Yes
|
| Type
|
LCD (Liquid Crystal Display)
|
| Language
|
English
|
| Language
|
English
|
| Voices
|
| Tone Generating Technology
|
AWM Stereo Sampling
|
| Number of Polyphony (Max.)
|
48
|
| Number of Voices
|
758 (237 Panel Voices + 24 Drum/SFX kits + 40 Arpeggio + 457 XGlite voices)
|
| Featured Voices
|
8 Sweet! Voices, 3 Cool! Voices, 3 Dynamic Voices
|
| GM
|
Yes
|
| XGlite
|
Yes
|
| Effects
|
| DSP
|
10 types (assignable on control knobs)
|
| Reverb
|
12 types
|
| Chorus
|
5 types
|
| Master EQ
|
6 types
|
| Harmony
|
26 types
|
| Dual/Layers
|
Yes
|
| Split
|
Yes
|
| Arpeggio
|
150 types
|
| Melody Suppressor
|
Yes
|
| Crossfade
|
Yes (for Internal/AUX IN)
|
| Accompaniment Styles
|
| Number of Preset Styles
|
235
|
| Fingering
|
Multi finger
|
| Style Control
|
ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
|
| File Format
|
Style File Format (SFF)
|
| One Touch Setting (OTS)
|
Yes
|
| Expansion Style
|
10
|
| Groove Creator
|
| Number of Groove
|
35
|
| Number of Sections
|
5 (4 Sections + 1 Musical Climax/Ending)
|
| Songs
|
| Number of Preset Songs
|
30
|
| Number of Songs
|
10
|
| Number of Tracks
|
6 (5 Melody + 1 Style/Groove Creator)
|
| Data Capacity
|
Approx. 19,000 notes (when only “melody” tracks are recorded)
|
| Recording Function
|
Yes
|
| Playback
|
SMF (Formats 0 & 1)
|
| Recording
|
Original File Format (SMF 0 conversion function)
|
| USB Audio Recorder
|
| Recording Time (max.)
|
80 minutes (approx. 0.9 GB) per Song
|
| Playback
|
WAV (44.1 kHz, 16 bit, stereo)
|
| Recording
|
WAV (44.1 kHz, 16 bit, stereo)
|
| Quick Sampling
|
| Sampleing Type
|
Normal, Oneshot, Loop
|
| Samples (Preset/Usesr)
|
5
|
| Sampling Time
|
Approx. 9.6 sec
|
| Sampling Sources
|
AUX IN
|
| Sampling Format
|
Original File Format (16 bit, stereo)
|
| Sampling Rate
|
44.1 kHz
|
| Functions
|
| USB audio interface
|
44.1 kHz, 16 bit, stereo
|
| Number of Buttons
|
4 (x 8 banks)
|
| Metronome
|
Yes
|
| Tempo Range
|
11 – 280
|
| Transpose
|
-12 to 0, 0 to +12
|
| Tuning
|
427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
|
| Scale Setting
|
Yes
|
| PIANO Button
|
Yes (Portable Grand Button)
|
| Storage and Connectivity
|
| Internal Memory
|
Approx. 1.73 MB
|
| External Drives
|
USB flash drive
|
| DC IN
|
DC IN 12 V
|
| AUX IN
|
Yes (Stereo-mini)
|
| Headphones
|
x 1 (PHONES/ OUTPUT)
|
| Sustain Pedal
|
Yes
|
| USB TO DEVICE
|
Yes
|
| USB TO HOST
|
Yes (MIDI/Audio: 44.1 kHz, 16 bit, stereo)
|
| Amplifiers and Speakers
|
| Amplifiers
|
6 W + 6 W (When using PA-150 AC adaptor)
|
| Speakers
|
12 cm x 2
|
| Power Supply
|
| Power Supply
|
AC
Adaptors (PA-150 or an equivalent recommended by Yamaha) or batteries
(Six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable
(HR6) batteries)
|
| Power Consumption
|
8 W (When using PA-150 AC adaptor)
|
| Auto Power Off Function
|
Yes
|
| Accessories
|
| Music Rest
|
Yes
|
| Song Book
|
Download from website
|
